The Hong Ky HK-CTL1300 steel coil uncoiler is designed to unroll steel coils and cut them into flat steel sheets with precise dimensions. This reliable machine is ideal for steel processing factories, household appliance manufacturers, and the automotive industry. Made in Vietnam, it delivers exceptional performance.

Uncoil Ø1000–1800
Thickness 0.3–2.3 mm
Width 600–1300 mm
Load max 3 tons
Cut speed 80 m/min

Steel sheet uncoiling machine HK-CTL1300

The Hong Ky HK-CTL1300 steel coil uncoiler is a robust machine used to unwind steel coils and cut them into sheets according to specific size requirements. Designed and engineered by experts from Japan, this machine is a key part of production lines in industries such as steel processing, appliance manufacturing, and automotive production. The machine’s advanced design ensures high precision and durability, offering a reliable solution for mass production.

The HK-CTL1300 steel sheet uncoiling machine features modern design, flexible cutting unit, PLC control and smart HMI; uncoiling Ø1000–1800, thickness 0.3–2.3mm, width 600–1300mm, max load 3 tons, cutting speed 80 m/min.

Features

Straightening unit with cassette design for easy maintenance and quick cleaning.
Servo-driven cutting system for fast and precise cutting of steel.
Automatic operation system ensures optimal efficiency with minimal human intervention.
Continuous cutting for high-speed operations, featuring dual stacking tables for seamless output.
PLC-based controls with an HMI touchscreen, making machine operation user-friendly and efficient.

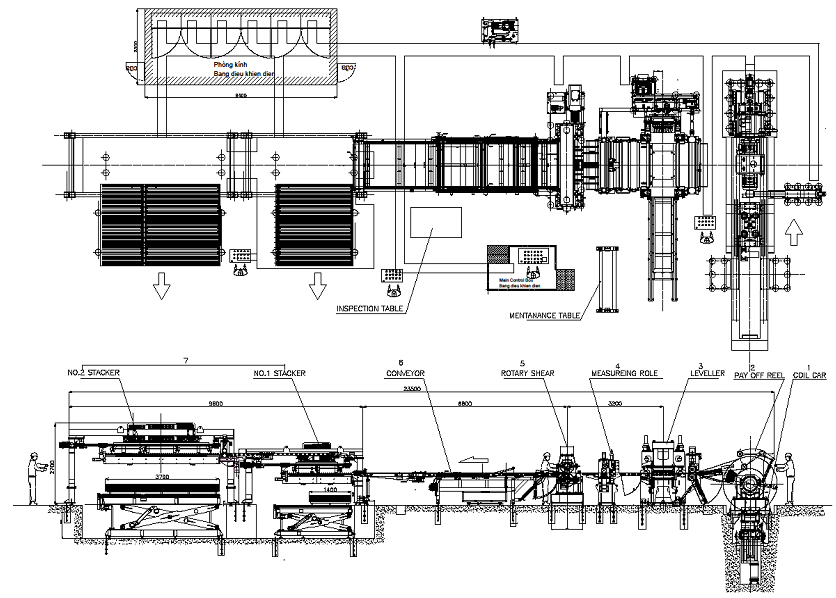

MACHINE LAYOUT

Sơ đồ bố trí máy xả tấm Hồng Ký HK CTL1300

Note:

Uncoiler lifting unit
Uncoiler unit
Straightening unit
Sheet length measurement unit
Cutting unit
Conveyor unit
Finished product stacking unit

Applications
The HK-CTL1300 is perfect for industries such as:

Steel processing plants.
Automotive manufacturing.
Household appliance production.
Any application requiring high-quality flat steel sheets.

Suitable materials

The machine is designed for use with steel coils, ideal for cutting and uncoiling various steel grades used in industrial production, including mild steel, stainless steel, and galvanized steel.

Contact information

For export inquiries to receive a quotation for steel sheet uncoiling lines manufactured in Vietnam, please contact us at +84 909 073 505.

SPECIFICATION	UNIT	VALUE
Material	mm	SS400
Tensile strength	MPa	400
Yield strength	MPa	300
Material Thickness	mm	0.3 – 2.3
Coil width	mm	Min 600 ~ Max 1300
Coil outer diameter	mm	Ø 1000 ~ Ø 1800
Coil inner diameter	mm	Ø 508/ Ø610
Coil weight	Tons	Max 20
Cut length of sheet	mm	300 ~ 4200
Width of sheet	m	250 ~ 1300
Length accuracy	mm	±0.5
Diagonal accuracy	mm	±0.5
Speed	m/min	Max 80
Max stacked height	mm	500 (bao gồm pallet)
Max stacked height	Tons	3
Power consumption	Kw	145
Machine dimension	m	23 x 10 x 3 (LxWxH)
