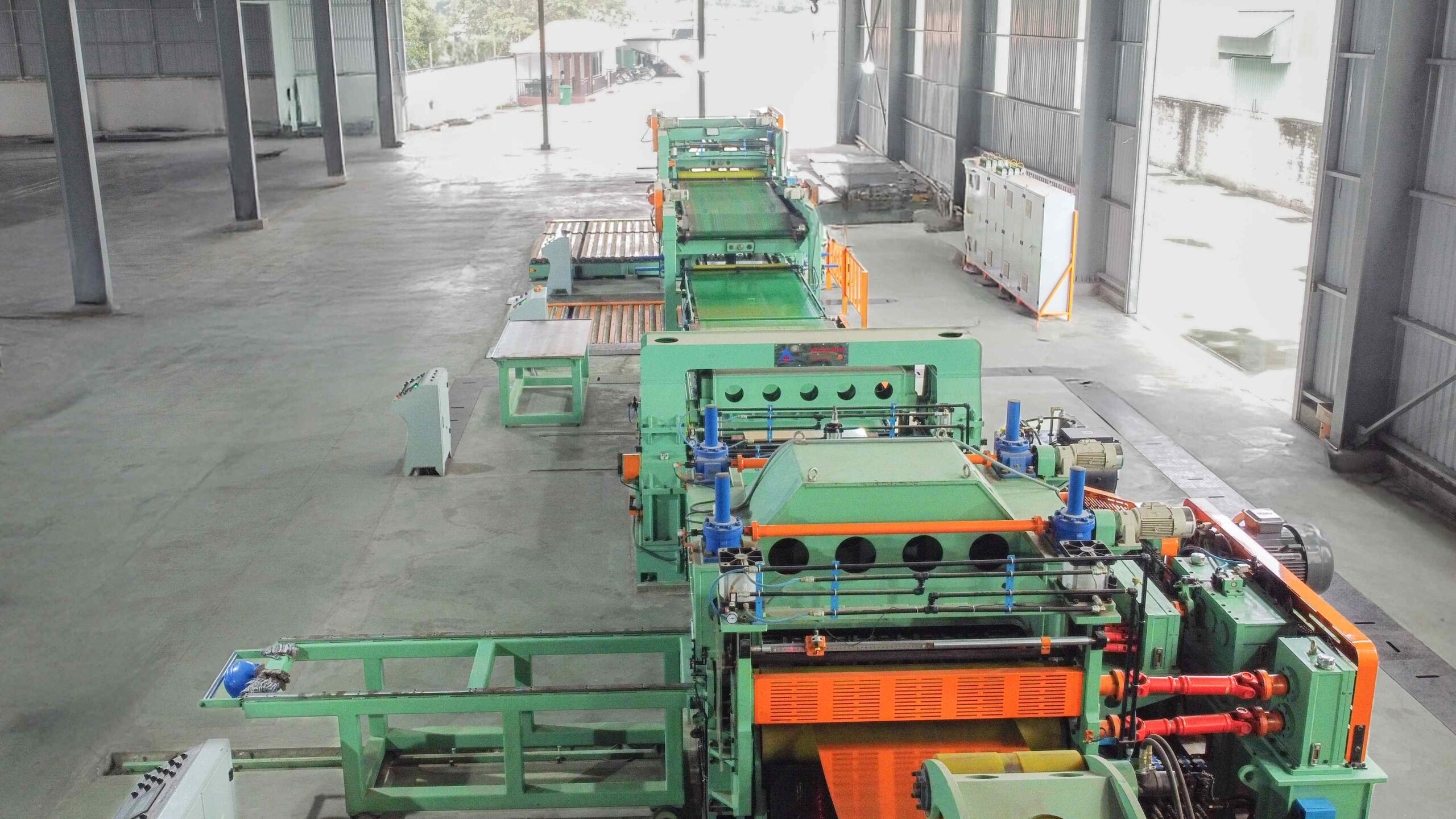

Hong Ky Cut To Length line – model HK-CTL1300

The Hong Ky HK-CTL1300 steel coil uncoiler is designed to unroll steel coils and cut them into flat steel sheets with precise dimensions. This reliable machine is ideal for steel processing factories, household appliance manufacturers, and the automotive industry. Made in Vietnam, it delivers exceptional performance.

Product information
  • Servo-controlled cutting system for fast and accurate cuts.
  • Cassette-type straightening unit for easy maintenance and quick cleaning.
  • Continuous cutting design with dual stacking tables for efficient operation.
  • PLC-based control system integrated with a user-friendly HMI touchscreen.
  • High automation system to optimize productivity and reduce operational costs.

Overview

The Hong Ky HK-CTL1300 steel coil uncoiler is a robust machine used to unwind steel coils and cut them into sheets according to specific size requirements. Designed and engineered by experts from Japan, this machine is a key part of production lines in industries such as steel processing, appliance manufacturing, and automotive production. The machine’s advanced design ensures high precision and durability, offering a reliable solution for mass production.

Features

  • Straightening unit with cassette design for easy maintenance and quick cleaning.
  • Servo-driven cutting system for fast and precise cutting of steel.
  • Automatic operation system ensures optimal efficiency with minimal human intervention.
  • Continuous cutting for high-speed operations, featuring dual stacking tables for seamless output.
  • PLC-based controls with an HMI touchscreen, making machine operation user-friendly and efficient.

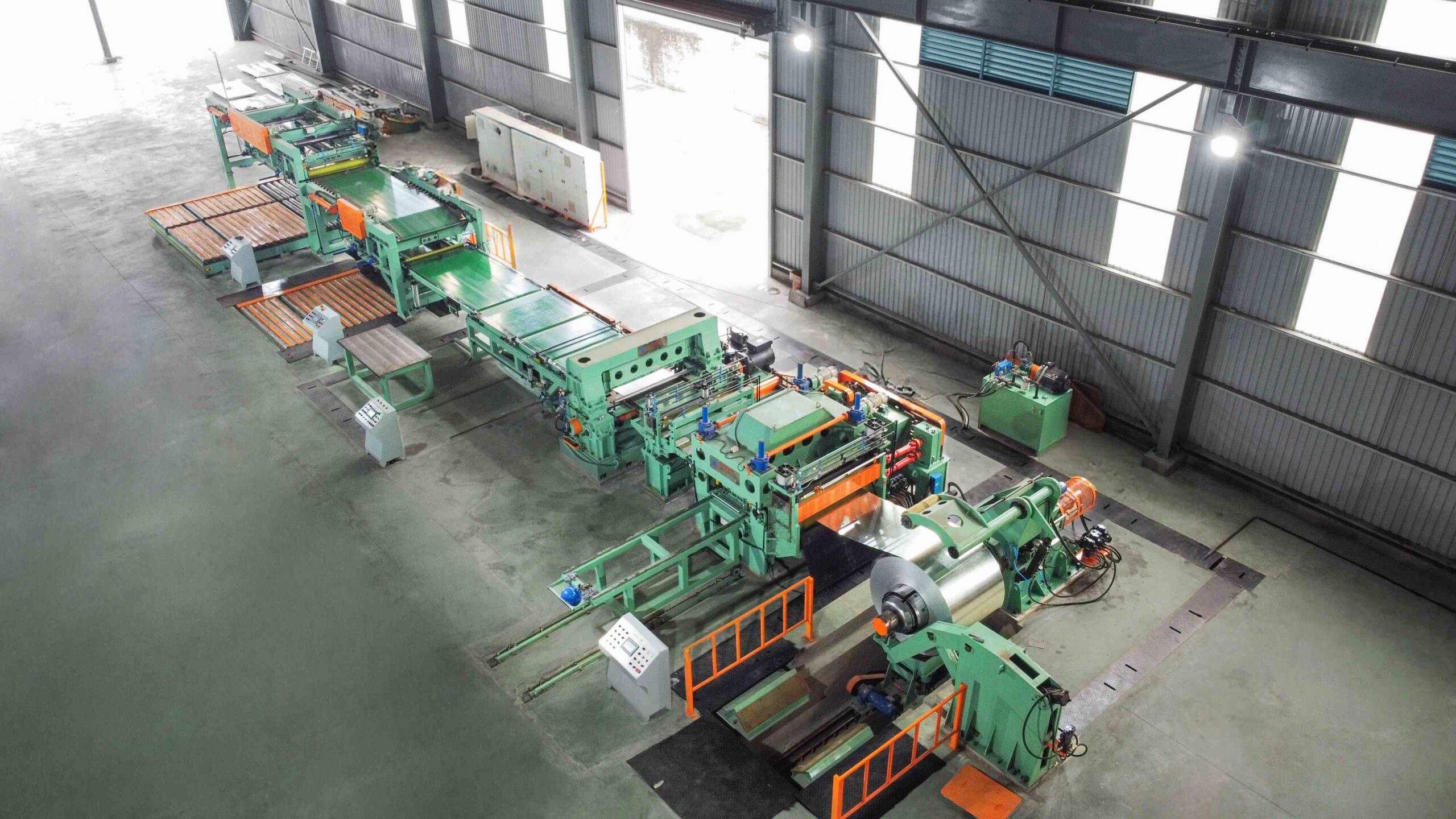

MACHINE LAYOUT

Sơ đồ bố trí máy xả tấm Hồng Ký HK CTL1300

Note:

  1. Uncoiler lifting unit

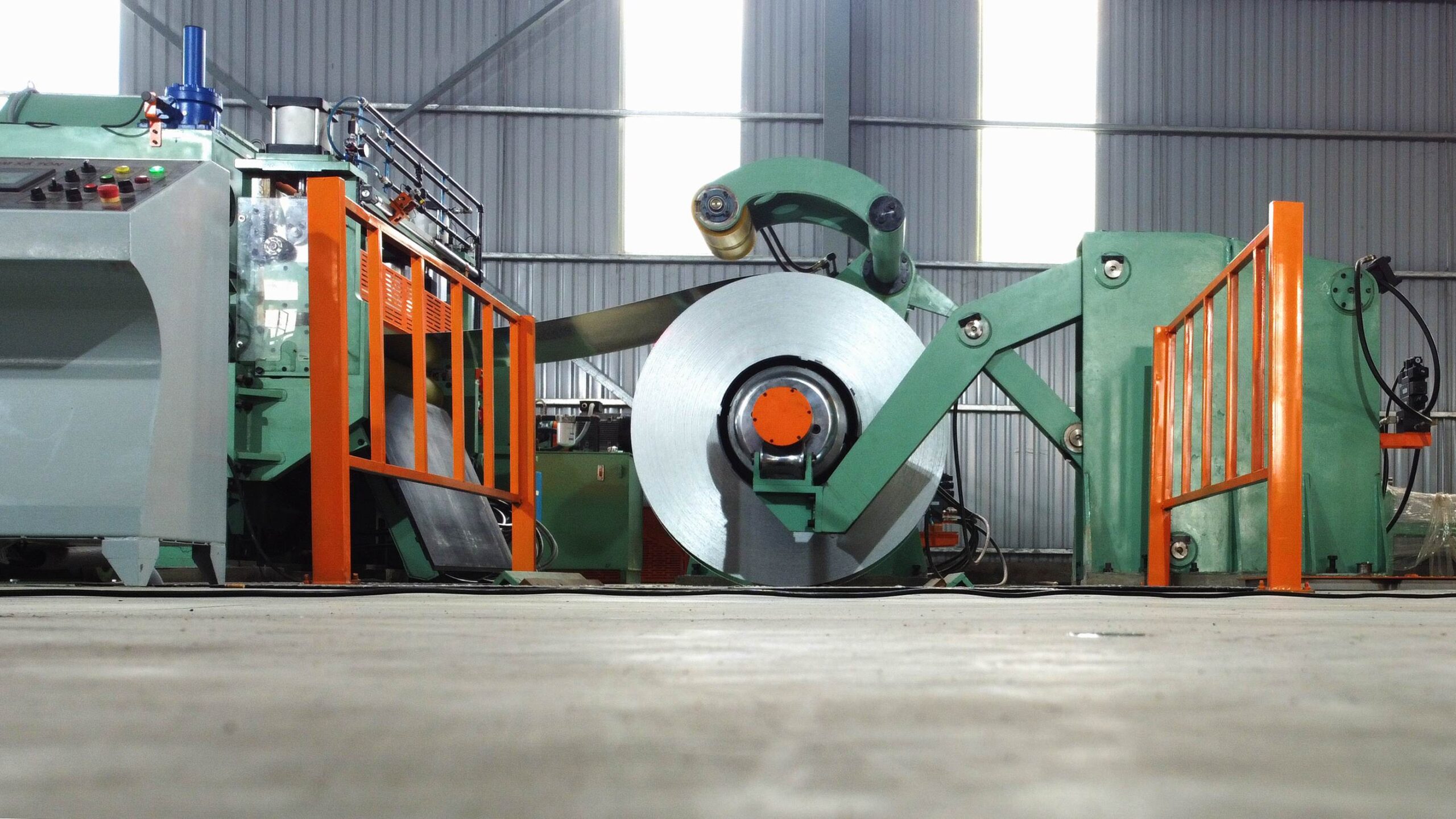

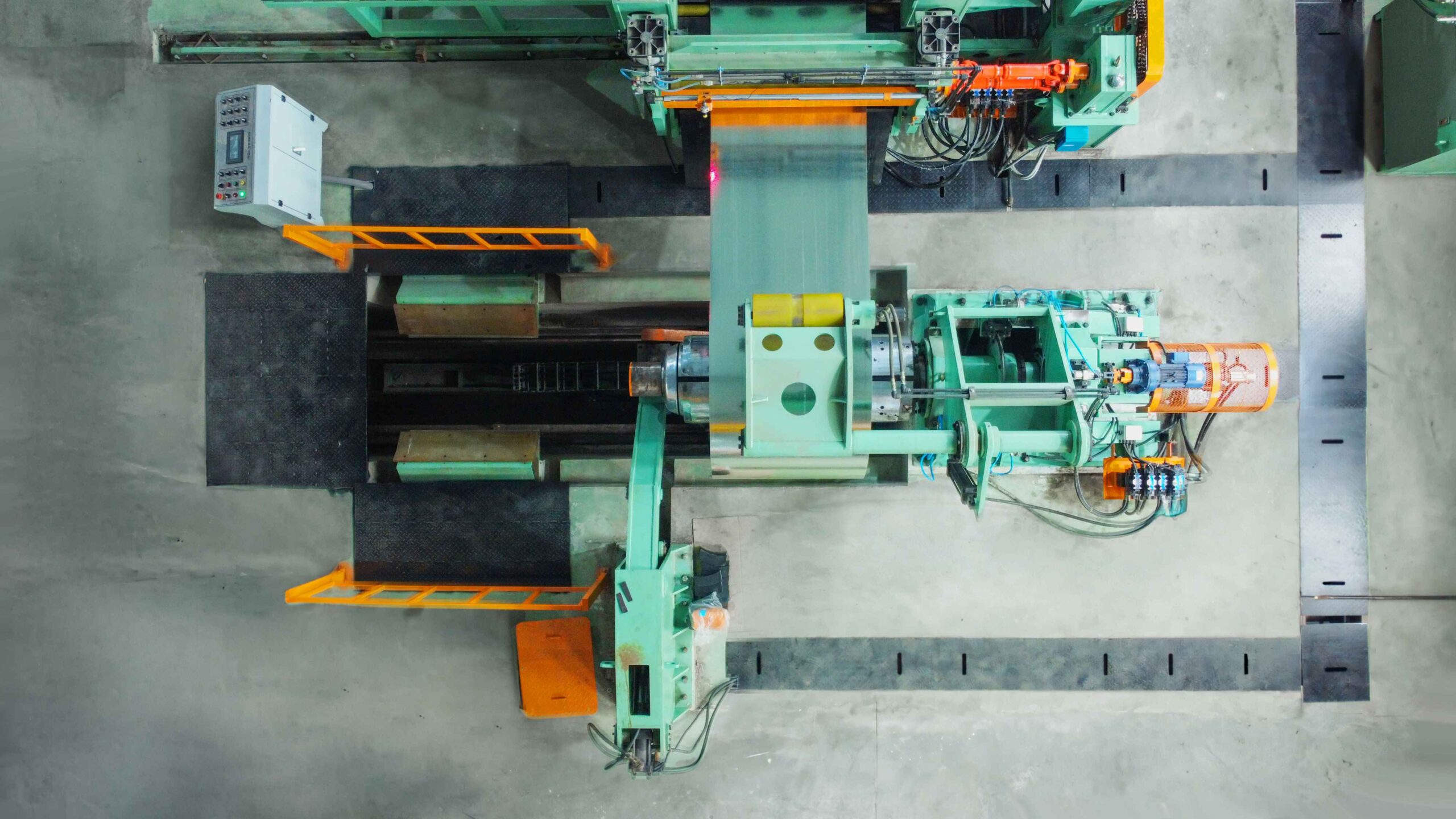

  2. Uncoiler unit
  3. Straightening unit
  4. Sheet length measurement unit

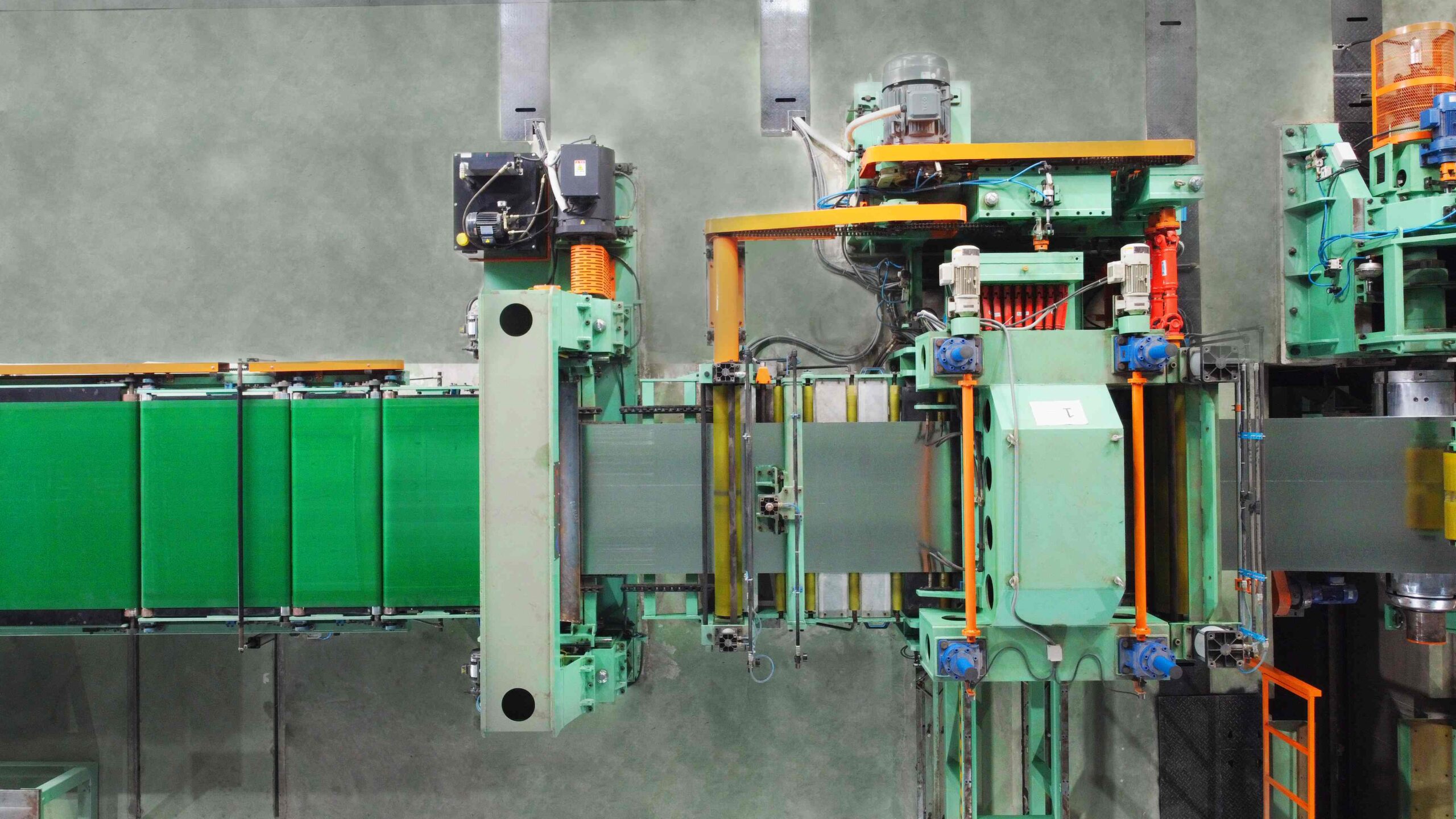

  5. Cutting unit

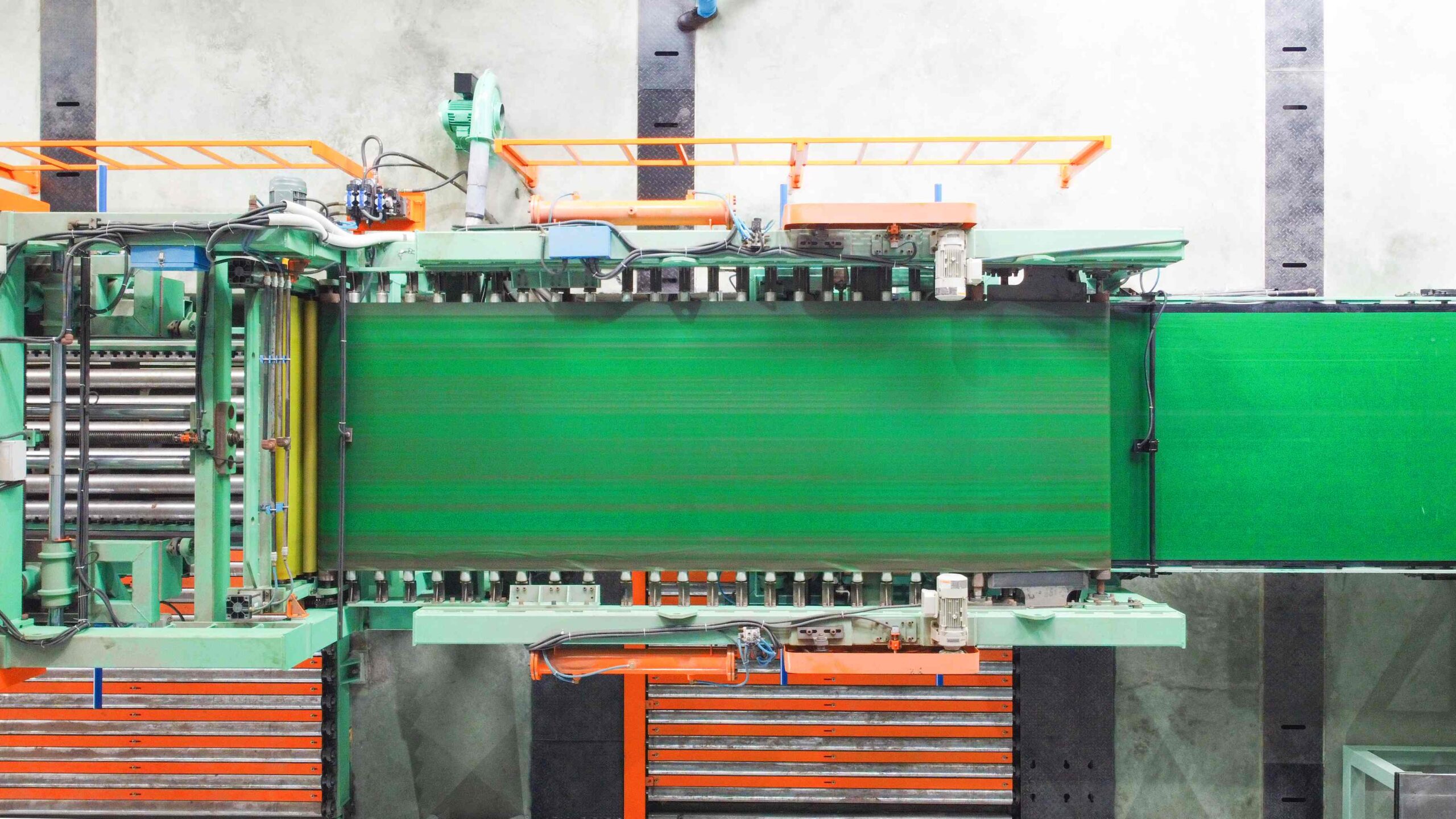

  6. Conveyor unit
  7. Finished product stacking unit

Applications
The HK-CTL1300 is perfect for industries such as:

  • Steel processing plants.
  • Automotive manufacturing.
  • Household appliance production.
  • Any application requiring high-quality flat steel sheets.

Suitable materials
The machine is designed for use with steel coils, ideal for cutting and uncoiling various steel grades used in industrial production, including mild steel, stainless steel, and galvanized steel.

Contact information

For export inquiries, contact us at +84 909 073 505.

Technical Specifications

SPECIFICATION UNIT VALUE
Material mm SS400
Tensile strength MPa 400
Yield strength MPa 300
Material Thickness mm 0.3 – 2.3
Coil width mm Min 600 ~ Max 1300
Coil outer diameter mm Ø 1000  ~  Ø 1800
Coil inner diameter mm Ø 508/ Ø610
Coil weight Tons Max 20
Cut length of sheet mm 300 ~ 4200
Width of sheet m 250 ~ 1300
Length accuracy mm ±0.5
Diagonal accuracy mm ±0.5
Speed m/min Max 80
Max stacked height mm 500 (bao gồm pallet)
Max stacked height Tons 3
Power consumption Kw 145
Machine dimension m 23 x 10 x 3 (LxWxH)
