Mortising Machine

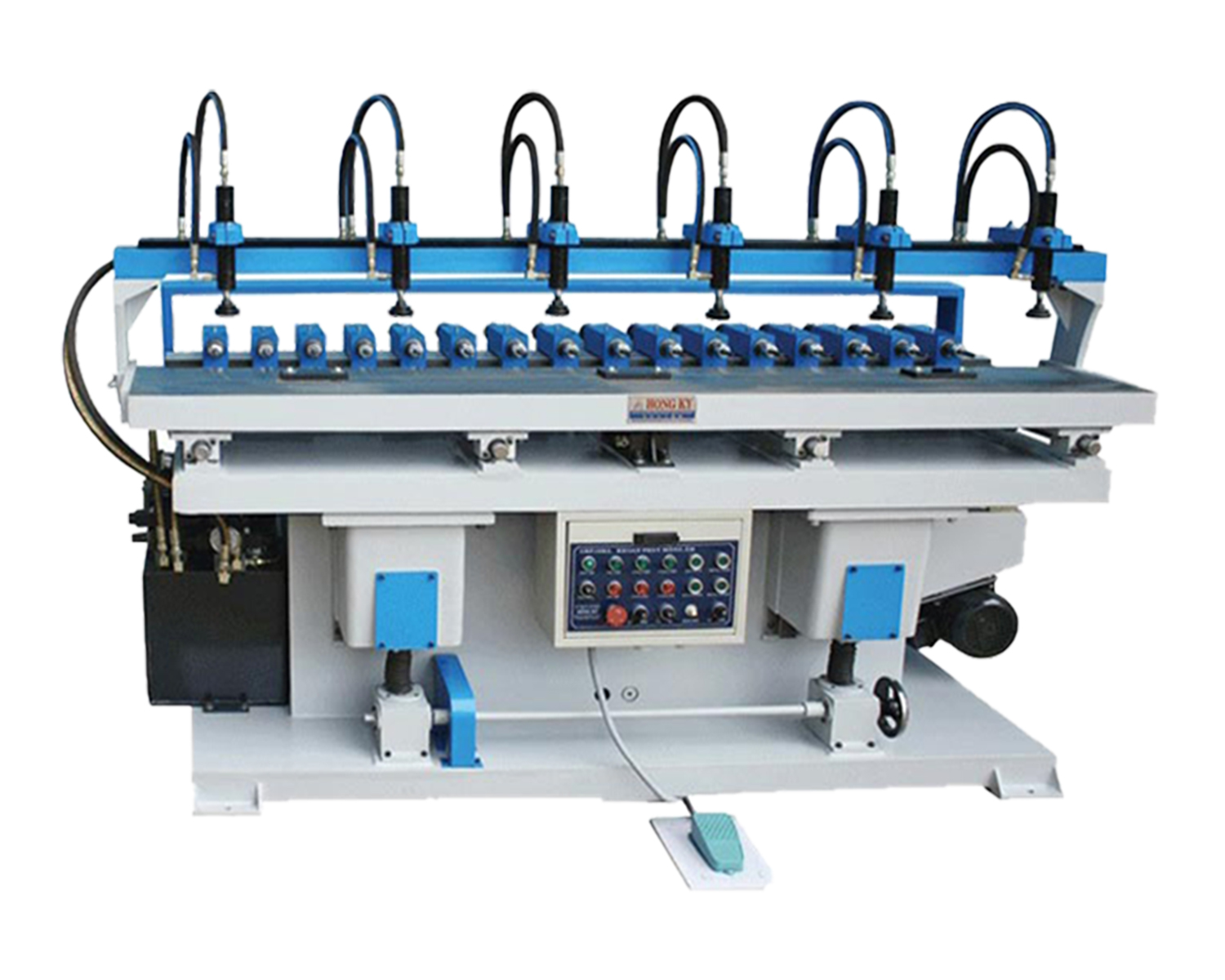

The Hong Ky Mortising Machine, Made in Vietnam, is engineered for precision and efficiency in woodworking projects. Built with a robust structure, it ensures stability and high performance in mortising tasks.
- High-precision ball rail system for smooth sliding motion.
- Powerful hydraulic clamping for secure material hold.
- Sturdy, vibration-free frame for consistent performance.
- Automatic table elevation and workpiece clamping.
- Simple setup with coordinate-saving technology for repeat jobs.
Overview
The Hong Ky Mortising Machine stands out in woodworking machinery for its advanced technology and durable build. The system saves operators time by eliminating repetitive adjustments, making it perfect for high-volume work. Designed for woodworking router and mortising operations, this wood working machine excels in creating accurate joints.
Features
- Router machine for wood equipped with a smooth sliding ball rail system.
- Hydraulic clamping secures even large or heavy workpieces.
- Rigid, heavy-duty construction minimizes vibrations, enhancing cutting precision.
- Automated table adjustments for fast, efficient material handling.
- Coordinate-saving function for efficient, consistent setups.
Applications
Ideal for various woodworking tasks, including furniture manufacturing, joinery, and custom wood projects. Perfect for both small workshops and large production facilities looking for reliable, high-precision woodworking router systems.
Suitable Materials
Best suited for a wide range of wood types, including hardwood, softwood, and engineered wood products.
Contact Information
Contact us at +84 909 073 505 for export inquiries.
Technical Specifications
| Specification | Value |
| Timber species | Softwood / Hardwood |
| Operating voltage | 380V ± 5%, 50Hz |
| Hydraulic motor | 1.5Hp – 3 phases – 4P |
| Main spindle motor | 2 x (5Hp – 3 phases – 4P) |
| Table oscillating motor | 1Hp – 3 phases – 4P |
| Table lifting motor | 1Hp – 3 phases – 4P |
| Main spindle speed | 5900 – 6200 rpm |
| Closest distance between 2 bearings | 80 mm |
| Number of mill heads | 16 heads |
| Cylinder for clamping the workpiece | 6 cylinders |
| Table dimensions | 2200 x 320 mm |
| Table displacement | 70 mm |
| Maximum drilling stroke | 80 mm |
| Maximum tenon length | 90 mm + 2R |
| Oscillation frequency | 190 – 480 times/min |
| Maximum diameter of bit | Ø12 mm |
| Working pressure of hydraulic cylinder | 30 – 40 kgf/cm² |
| Machine dimensions (L x W x H) | 2300 x 900 x 1530 mm |
| Machine net weight | 1500 kg |
| Maximum working length | 2300 mm |
| Maximum working width | 320 mm |
| Maximum working thickness | 170 mm |
