Tube mill cold saw HK-CSC32 TO 45 R

I kept it faithful to the original but polished it slightly for technical clarity and marketing tone. If you’d like, I can refine it further into a more promotional style—something that would read smoothly in a product brochure or website. Would you like me to do that?

Product information

Pipe cutting 4–8 m
Output speed 30–90 m/min
Cutting blade Ø350 mm
Cuts round, square, rectangular

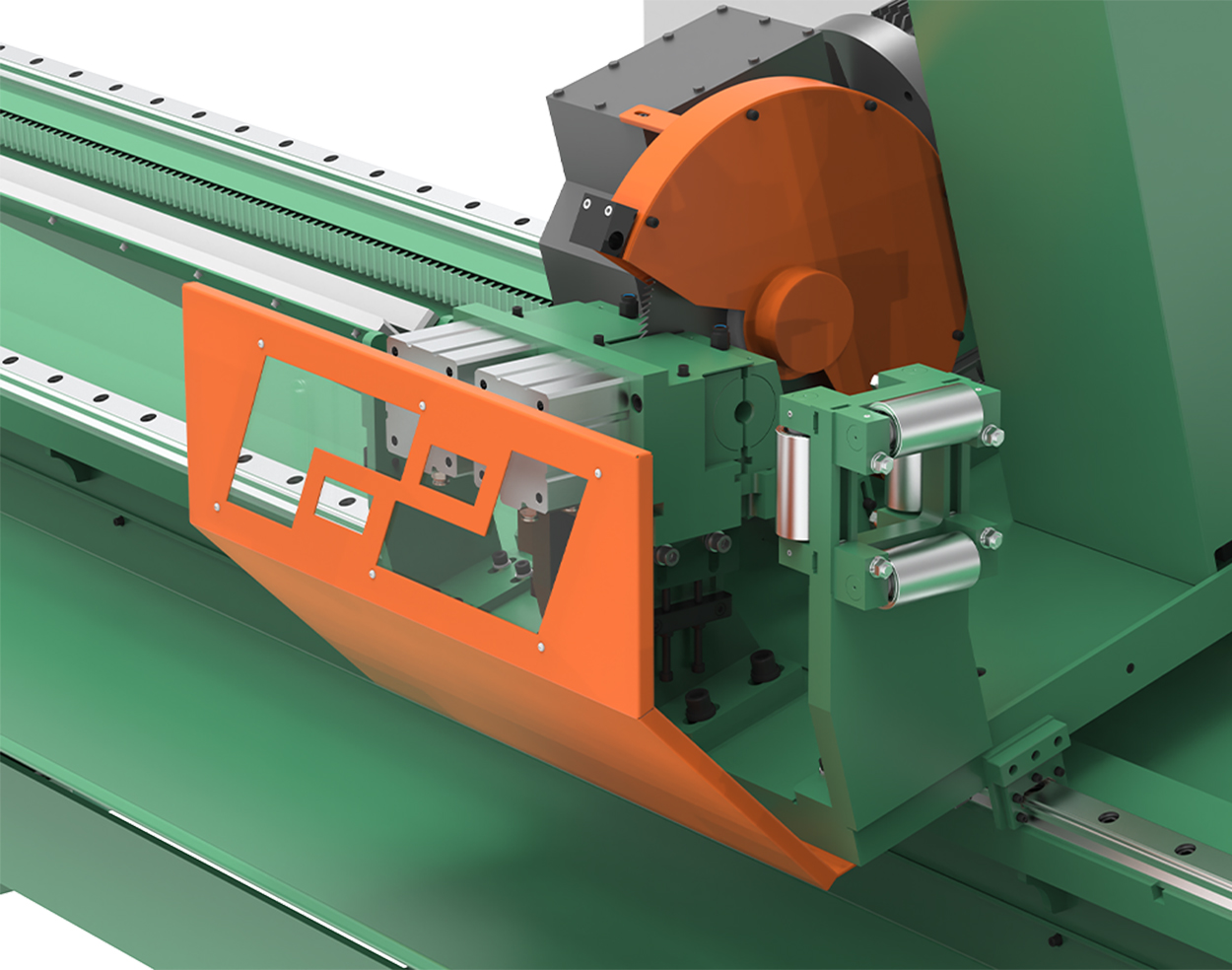

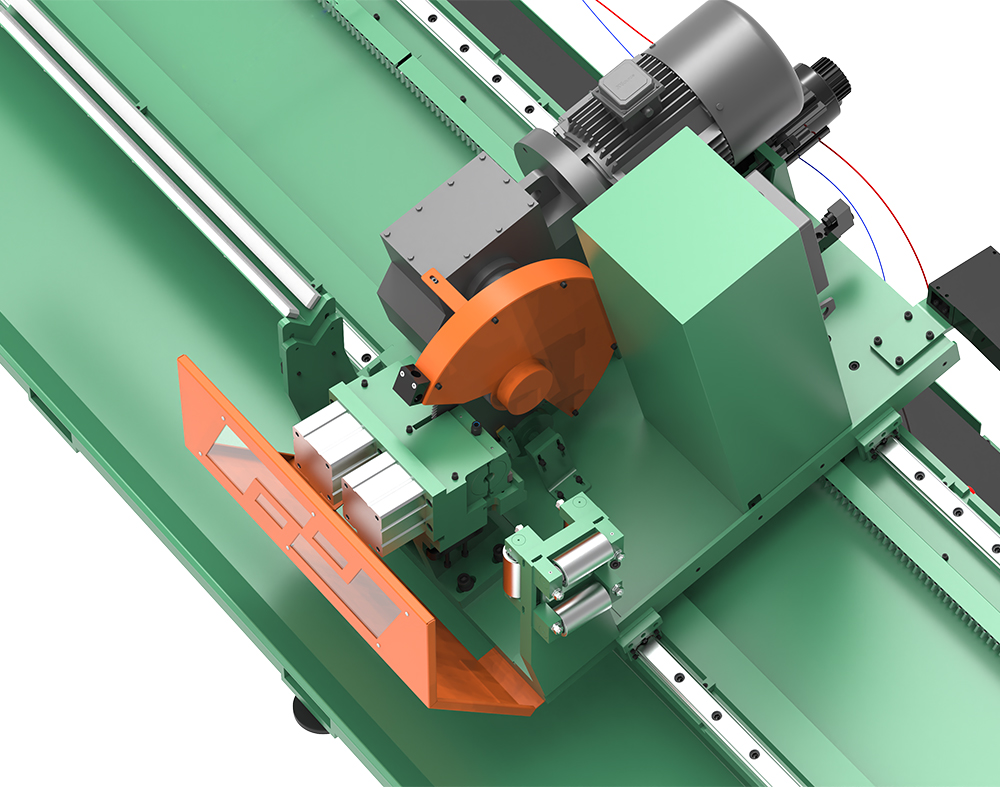

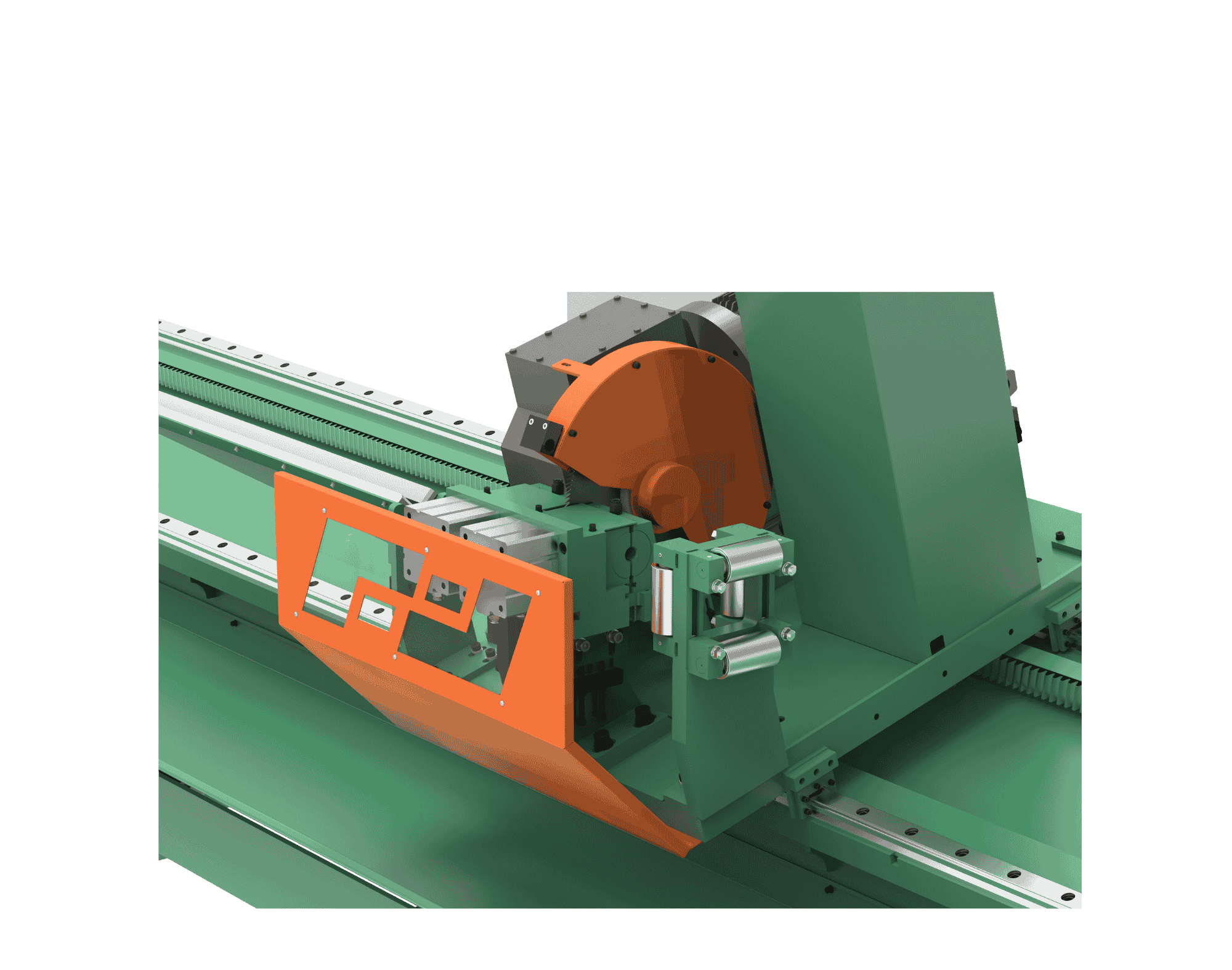

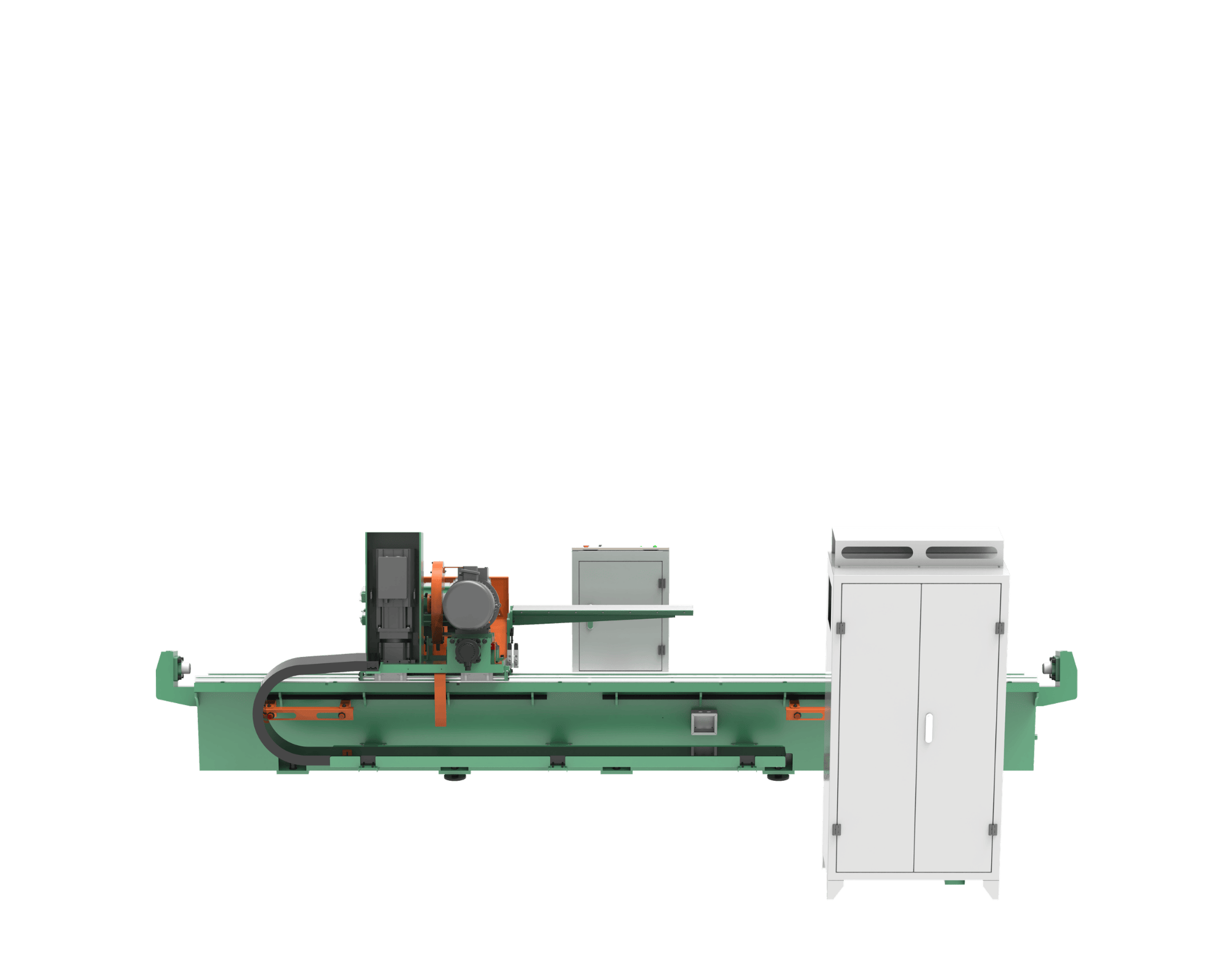

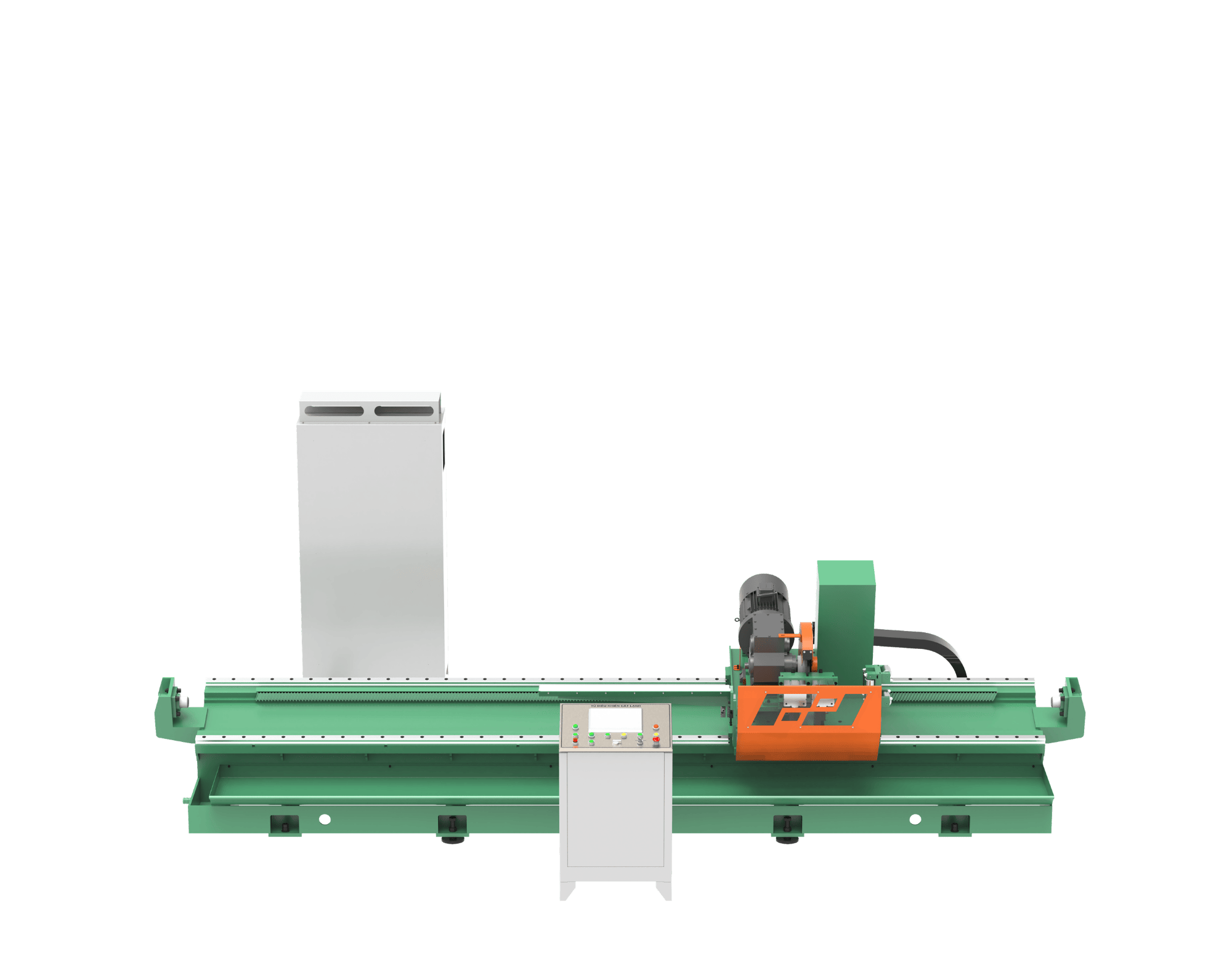

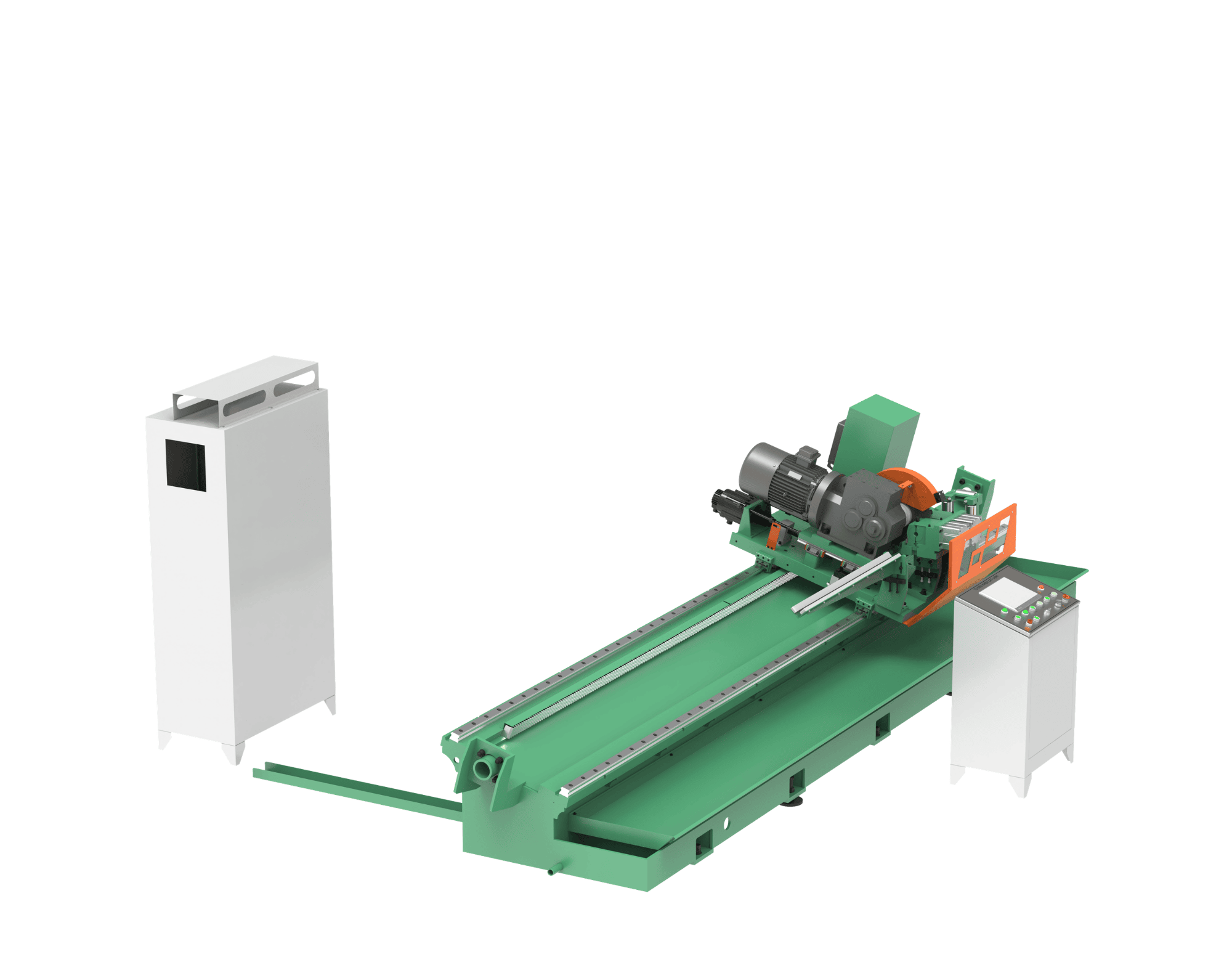

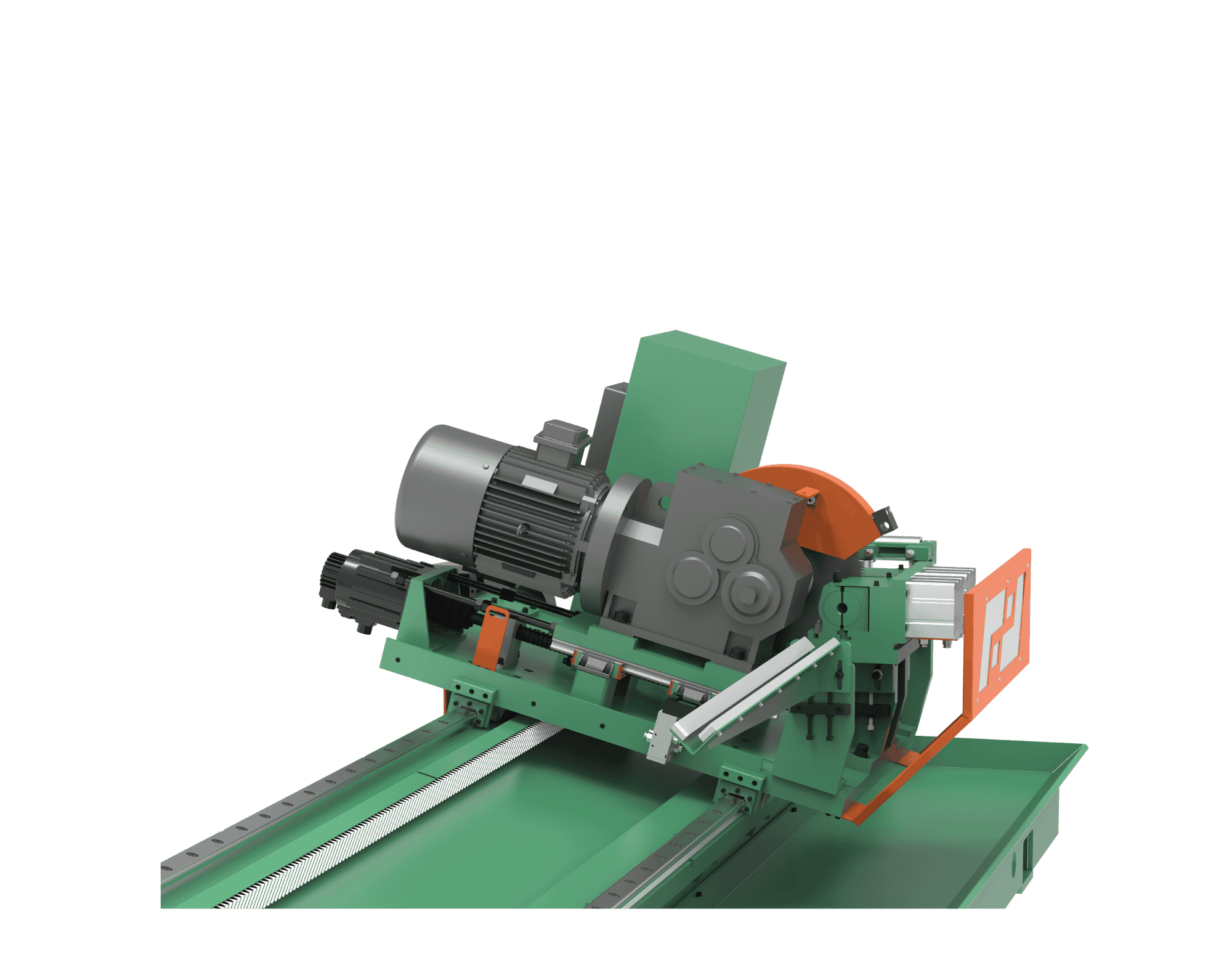

HK-CSC32 TO 45 R Cold Cutting Machine – A next-generation cold-cutting solution for modern pipe rolling lines.

In the context of the steel pipe manufacturing industry increasingly demanding higher speed, precision, and cut surface quality, Hồng Ký has successfully researched and developed the HK-CSC32 TO 45 R cold cutting machine. This next-generation equipment is specially optimized for modern steel pipe rolling lines.

Equipped with advanced drive technology combined with high-precision mechanical design, the HK-CSC32 TO 45 R cold cutting machine delivers a cutting solution with outstanding performance: durable – safe – energy-efficient, fully ready to replace traditional hot-cutting methods.

The equipment is specially designed for steel and stainless steel pipes. It operates in full synchronization with HK-S32 and HK-S45 pipe rolling lines. Flexibly accommodates various product types: round pipes, square pipes, and rectangular tubes with high precision and a perfect cut surface.

To ensure stable and efficient operation, the product is integrated with a series of superior features:

With a precise mechanical structure combined with top-quality components, the machine operates smoothly and stably, offering superior durability compared to other products in the same segment.
The servo motor maintains 100% rolling speed tracking, ensuring the cutting blade always follows the line speed precisely. This delivers smooth cuts without scratches or pipe-end deformation, enhancing the value of the finished product.
The intelligent PLC control system combined with a touchscreen HMI allows storage, editing, and optimization of cutting programs for each order.

It also significantly reduces long-term operating costs: maintenance, blade replacement, and power consumption are 35–50% lower compared to hot-cutting machines, and 20–25% lower than other brands with similar features.

The HK-CSC32 TO 45 R is a synchronized, precise, and highly efficient cold-cutting solution, delivering comprehensive optimization for modern pipe rolling lines. It is a smart investment choice to upgrade production capacity, improve product quality, and reduce operating costs for businesses.

If you are interested in the product, please leave your information in the comment section or contact our hotline at +84 909 073 505 for detailed consultation and quotation.

Specification	Unit	HK-CSC32 TO 45 R
Rolling material		Galvanized steel, hot-rolled, cold-rolled steel
Rolling material		Tensile strength ≥ 300 ≤ 450 MPA
Round pipe diameter	mm	Ø12.7 – Ø60
Round pipe thickness	mm	0.5 – 2.0
Square pipe size	mm	12 x 12 – 45 x 45
Square pipe thickness	mm	0.5 – 1.5
Rectangular pipe size	mm	9 x 13 – 30 x 60
Rectangular pipe thickness	mm	0.5 – 1.5
Production speed	m/min	30 – 90 (depends on thickness, specification and material)
Post-welding pipe length	m	4.0 – 8.0
Cutting blade size	mm	Ø350 (HSS)
Table drive motor	Pcs	Servo motor – 11 kW
Cutting motor	Pcs	7.5 kW – 1400 rpm (Made in China)
Cut-off feeding motor	Pcs	Servo motor – 2 kW
Operating voltage	V/Hz	380V / 440V – 50Hz
Machine dimensions (W x H x L)	mm	1438 x 1330 x 4974
Machine direction		Right / Left
