Hongky HK300E2 MMA welder features a sturdy design, supports 2.6–5.0mm electrodes, runs stably on 220/380V, equipped with Arc Force, Hot Start, and LED overheat warning ideal for professional workshops

Supports 2.6 – 5.0mm electrodes, continuous welding with 4.0mm rods
IGBT technology
Quick arc ignition with Hot Start
Stable arc with Arc Force
Suitable for light industrial use

Hongky Eco MMA Welder 300A 220/380V - HK300E2

The Hongky HK300E2 MMA welder with IGBT technology is an ideal choice for professional metal fabrication workshops thanks to its stable operation, powerful performance, and high flexibility.

The machine features a compact yet sturdy design and integrates multiple advanced functions to save time and improve work efficiency.

HK300E2 Highlight Features

Compact design with powerful performance

Weighs only 11.5kg, easy to move and operate.
Supports 2.6–5.0mm electrodes, continuous welding with 4.0mm rods.
25% duty cycle at 40°C, allowing continuous welding for 2.5 minutes at rated current without overheating

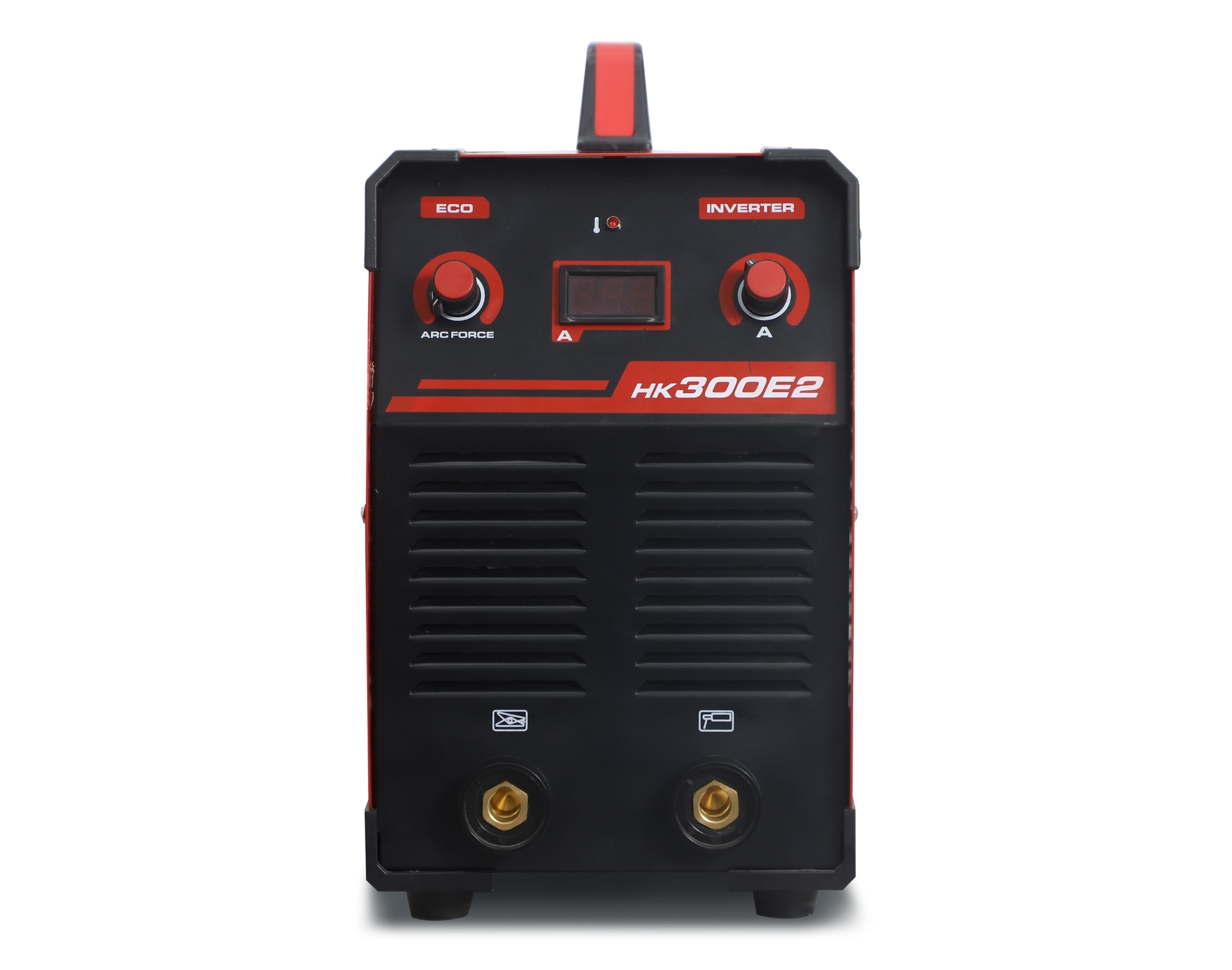

Equipped with a modern digital display

The digital display shows the actual welding current, allowing users to easily monitor and precisely adjust the amperage to suit each specific task

Overheat warning with LED indicator

Alerts and protects the machine when internal temperature exceeds the safe limit or during overcurrent conditions, helping ensure durability and extend the machine’s lifespan.

Arc Force Adjustment Feature

Automatically adjusts arc force during stick welding.
Supports stable arc ignition and reduces electrode sticking during start-up.
Manually adjustable Arc Force, with a range from 0 to 50A.

Automatically adjusts welding current during arc ignition with “Hot Start”

Increases current during arc ignition for easier striking. This ensures stable operation, improves efficiency, and reduces electrode sticking at the start of welding.

Input voltage: 220V and 380V

The HK300E2 welding machine can operate efficiently on both household 220V and industrial 380V power supplies, making it adaptable to various working environments.

Applications

Welds well on iron, steel, and stainless steel; suitable for both household workshops and light industrial use.
Ideal for repair work, metal frame fabrication, and steel structure assembly.
Easy to use for technicians on-site thanks to its compact design and simple operation.

Specification	Value
Input Power	1-Phase 220/380VAC
Rated Welding Output	300A, 32V DC 25% Duty cycle at 30°C
Amperage Range (A)	20-300A
Voltage Range (V)	20.8-32
Maximum Open Circuit Voltage (V)	70 V
Amperage Input at Rated Load Output (220V)	81 A
Amperage Input at Rated Load Output (380V)	59 A
KVA (220V)	17.9
KVA (380V)	22.4
KW (220V)	12.0
KW (380V)	11.8
Dimension (LWH) (mm)	515×206×372
Weight (Kg)	11.5

User Manual for Hongky HK300E2 MMA Welder

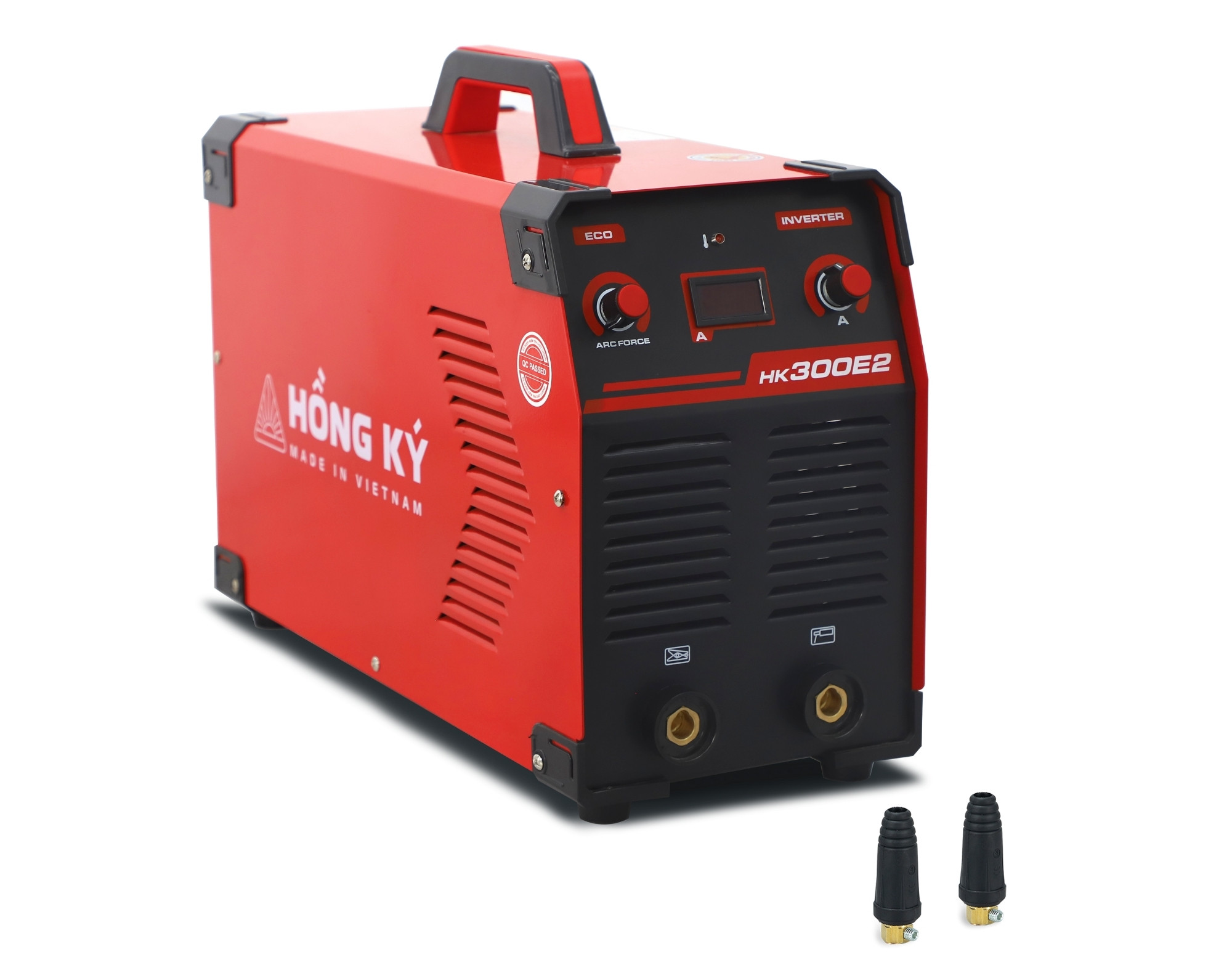

Extension Connector DK J35-50 (Quantity: 2)
