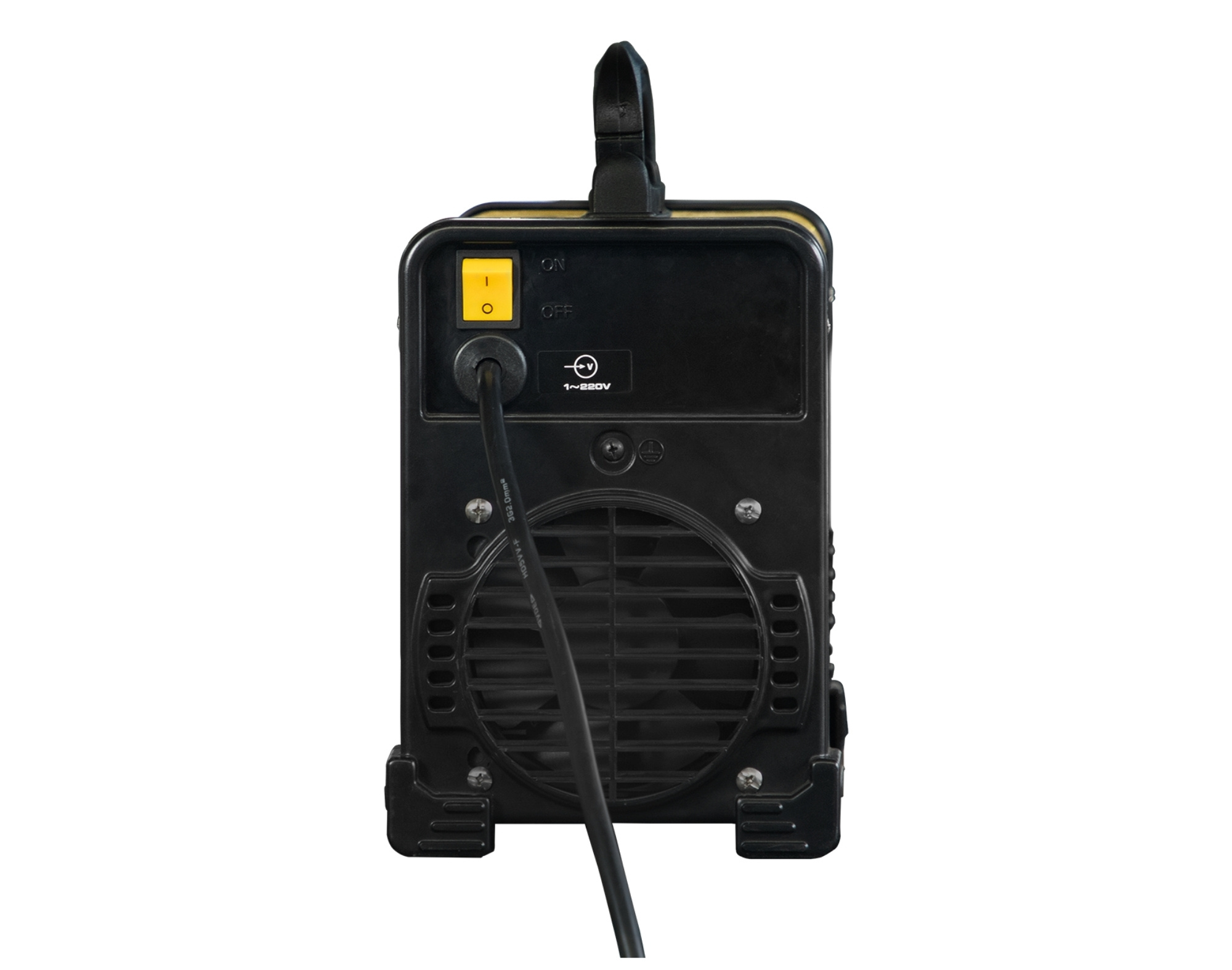

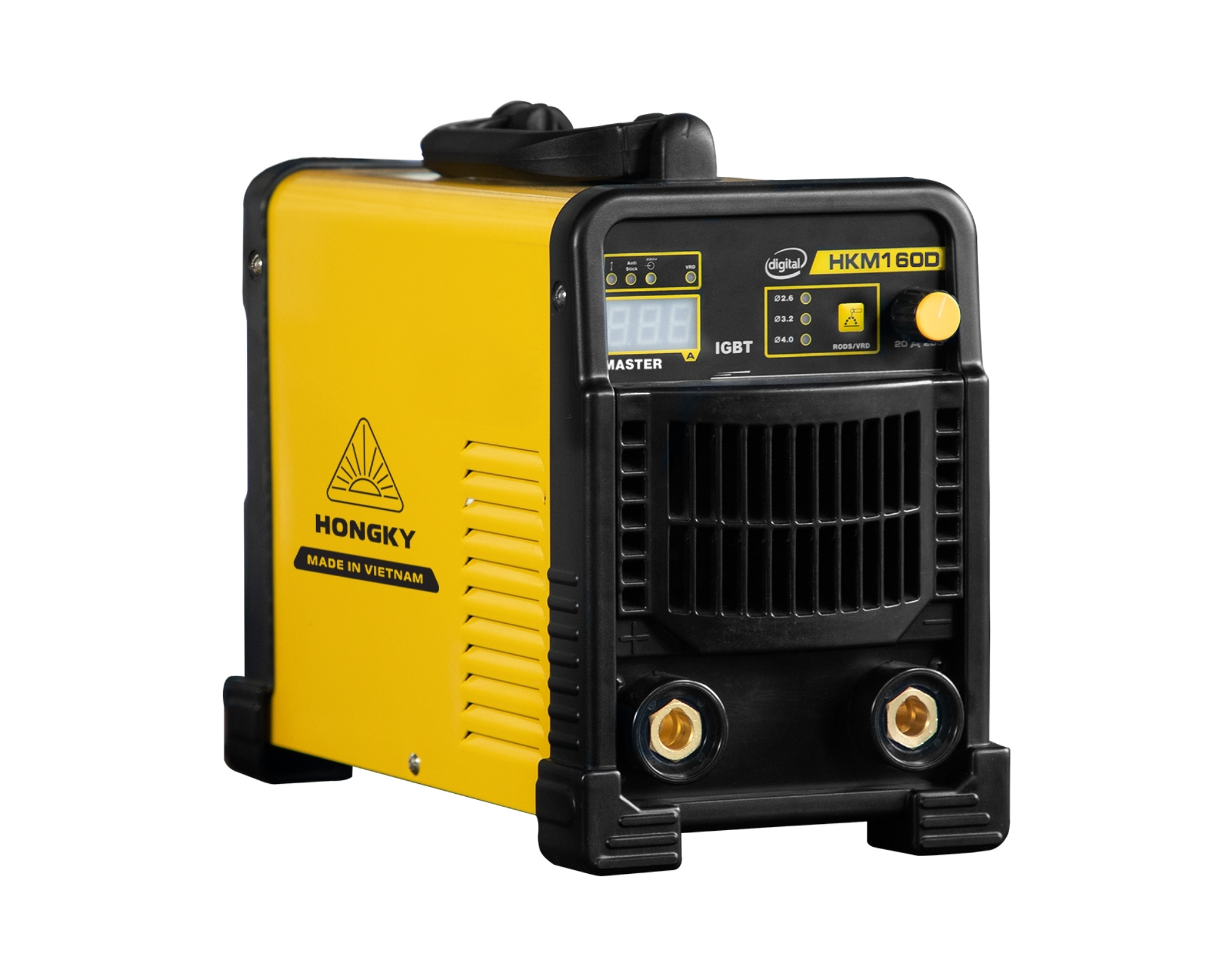

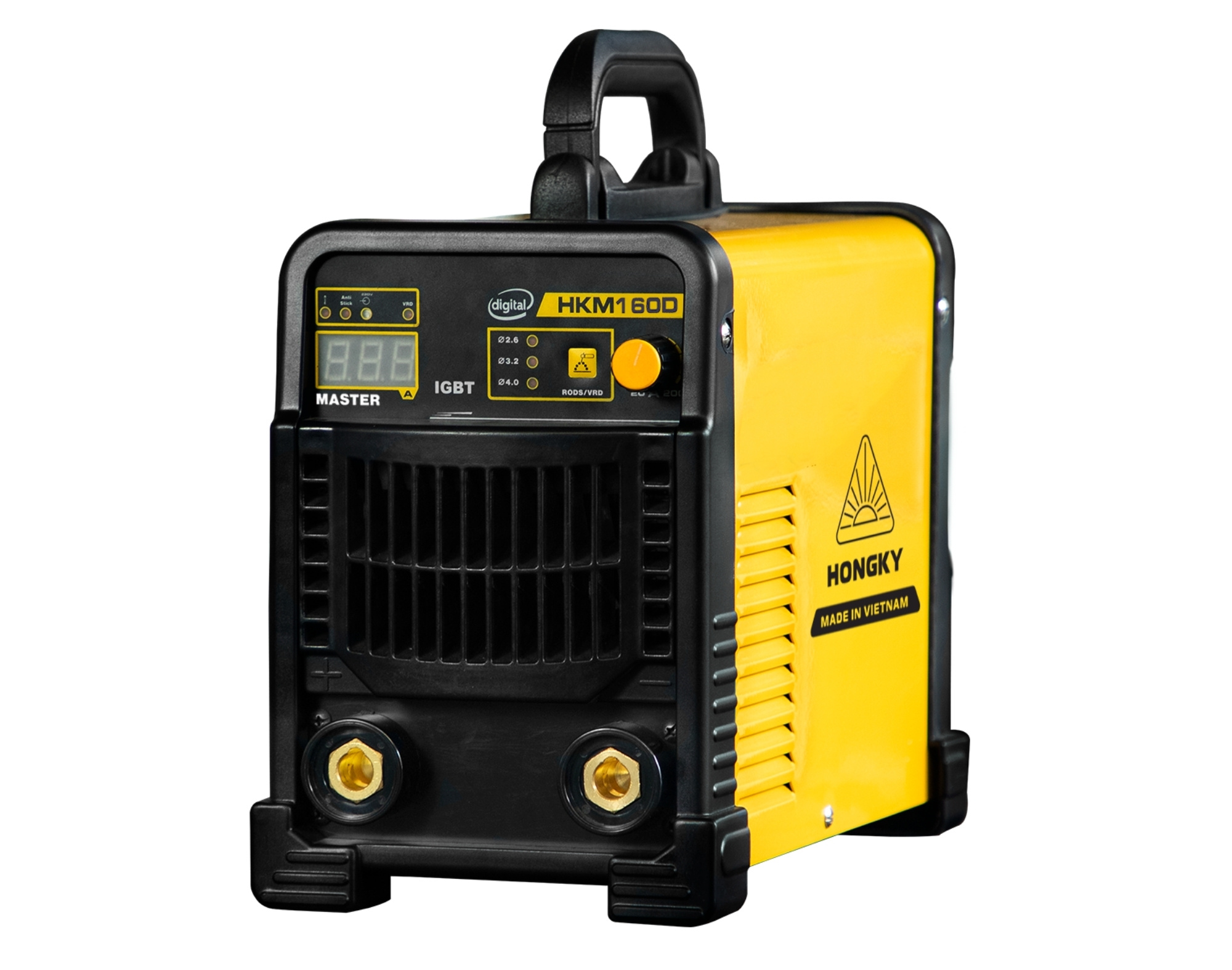

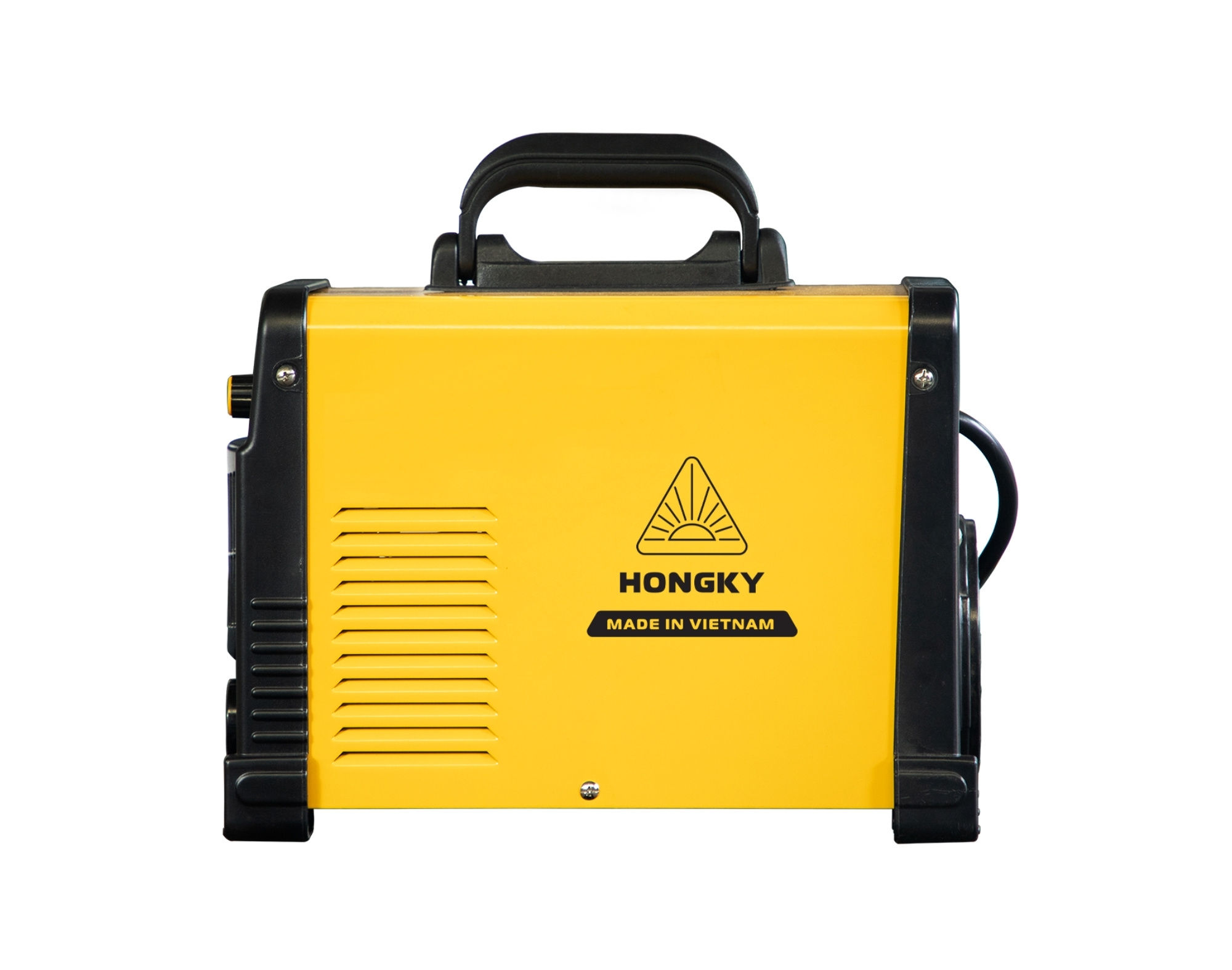

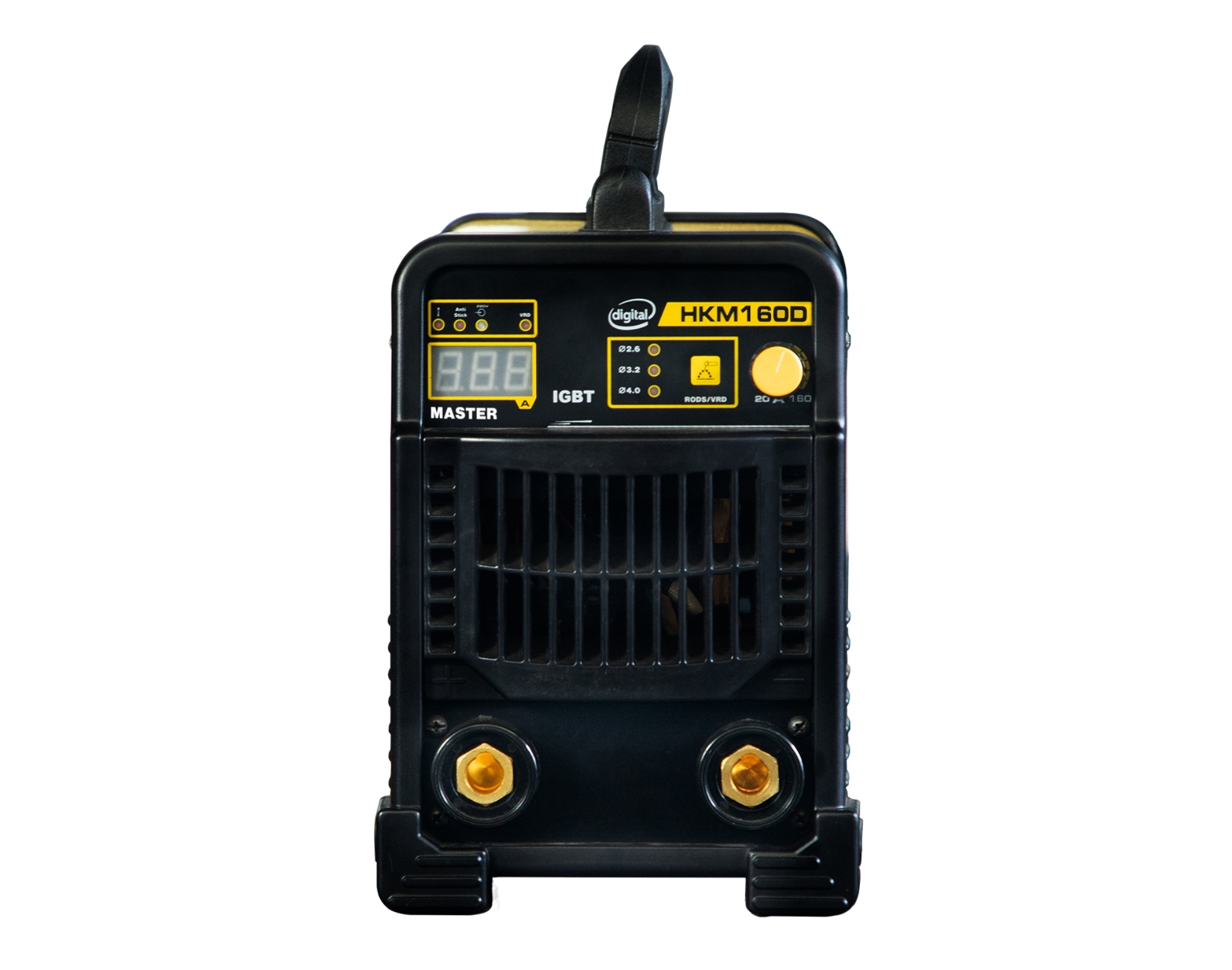

Hongky Master Digital MMA Welder HKM160D
Hong Ky Master Digital MMA Welder HKM160D with a compact design and powerful 160A output, capable of welding 4.0mm rods. Equipped with anti-shock and anti-stick functions, backed by an 18-month warranty. Ideal for welders, easy to use, and stable on steel and stainless steel.
- Compact and convenient welding machine
- Powerful performance, easily welds 4.0mm rods
- Digital display for precise readings
- Arc Force function ensures stable arc
- Anti shock feature for maximum safety protection
Overview
Full name: Hongky Master Digital MMA Welder HKM160D
The HKM160D stick welder is one of the most popular products on the market today. With a compact and sturdy design, this 160A Hong Ky welder weighs only 4.6kg, making it easy for users to move and store without worrying about workspace limitations.
With a powerful welding capacity of up to 160A, the machine can weld electrodes up to 4.0mm in diameter, delivering outstanding performance on various materials such as steel and stainless steel.
The HKM160D features a duty cycle efficiency of 20% at 40°C, allowing continuous welding of more than 10 rods of 3.2mm electrodes at 160A without overheating. This makes it an ideal choice for those seeking a high-quality, easy-to-use, and durable welding machine.
Key features of the HKM160D welding machine
Digital Display: The machine is equipped with a digital display that shows the exact welding current, allowing welders to easily and accurately control the amperage when making adjustments.
Overheat and Overcurrent Protection: LED indicators will alert the user when the welder experiences overheating or overcurrent issues, protecting the equipment from damage and extending its lifespan.
Arc Force Function (Automatic Arc Power): This feature stabilizes the welding arc, prevents sudden arc interruptions, and protects the electrode from sticking to the material.
Hot Start: At startup, the machine automatically adjusts the welding current, making arc striking easier, especially in challenging conditions such as damp electrodes or uneven work surfaces.
Anti-Shock Function: The welder reduces the open-circuit voltage to 14–15V when not welding, minimizing the risk of electric shock and ensuring maximum operator safety.
Anti-Stick Function: If the electrode sticks to the workpiece, this feature automatically cuts off the current after 3 seconds, allowing the welder to easily remove the electrode without difficulty.
For a reliable, easy-to-use stick welder, contact us at +84 909 073 505.
Hong Ky is always ready to provide consultation and help you choose the most suitable product for your needs.
Technical Specifications
| Specifications | Detail |
|---|---|
| Input power | 1 - Phase (220VAC ± 15%, 50/60Hz) |
| Function | MMA |
| Rated output power | 160A, 26.4V DC 20% Duty cycle at 40°C |
| Welding current range (A) | 20-160 |
| Voltage range (V) | 20.8-26.4 |
| Open circuit voltage (V) | 65 |
| Input current at rated output | 36A |
| KVA (Maximum apparent input power) | 7.9 |
| KW (Maximum input power) | 5.2 |
| Dimensions (Length × Width × Height) (mm) | 340 x 178 x 273 |
| Weight (Kg) | 4.6 |
User Manual
Updating
Accessories included
- Electrode holder with 3m welding cable
- Ground clamp with 2m cable
