The HKMIG500 Welder by Hong Ky is a 500 amp powerhouse designed for large-scale industrial applications in steel and iron welding. Perfect for heavy-duty projects in fabrication, construction, and marine welding, it combines durability with advanced energy-saving features. Made in Vietnam, this mig 500 welding machine is engineered to withstand the demands of tough environments.

Wire 1.0–1.2-1.6
4‑roll 15kg
3m Pana torch
10m S50 2T/4T
Industrial weld

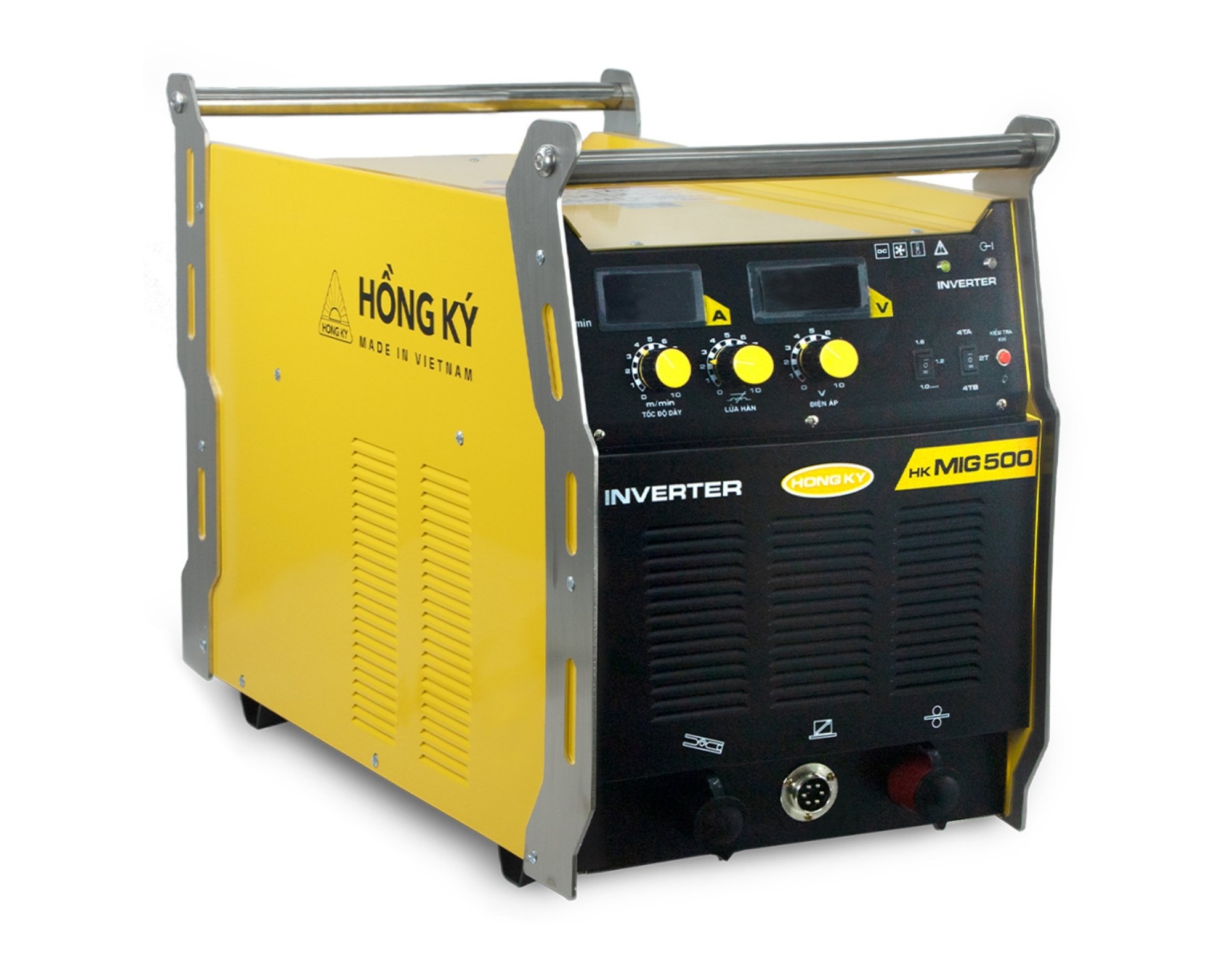

Hong Ky HKMIG500 High Power MIG Welder

Full name: Hong Ky Master MIG welding machine 500 Amp 380V – HKMIG500

The HKMIG500 is a high‑power 380V MIG welder from Hong Ky, built for heavy‑duty fabrication and large construction projects. Supporting 1.0–1.6mm wire for steel, iron, and stainless steel, it delivers strong, continuous performance with a duty cycle of 60% at 40°C ideal for demanding industrial work.

Features of the HKMIG500 MIG Welder

Automatic Cooling Fan: Activates only when internal temperatures reach 52°C, reducing dust intake and saving energy.
Three Welding Modes: 2T, 4TA, and 4TB modes allow hands-free and adaptable control for various welding applications.
Safety Indicators: Built-in alerts for overheating, overcurrent, and unstable power to protect both the equipment and operator.
Dual Stainless-Steel Handles: Two strong handles make transportation easier and secure, especially in industrial settings.
Sturdy Build: Coated with yellow electrostatic paint, the machine is both protected and highly visible in busy workshops.

Applications

The HKMIG500 Welder is ideal for use in:

Fabrication and metalworking shops
Marine welding on ships and watercraft
Assembling and repairing steel structures
Construction and heavy infrastructure work
Intense iron welding for large-scale projects

Suitable Materials

Steel
Stainless steel
Iron

Contact Information

If you’re looking for a high‑power welding machine, the HKMIG500 MIG welder is the perfect choice. Contact us at +84 909 073 505 for pricing and product consultation.

Specification	Details
Input Power	3-Phase (380VAC ± 15%, 50/60Hz)
Rated Output Power	500A, 39V DC, 60%
Welding Current Range (A) in Constant Current Mode (CC)	_________
Voltage Range (V) in Constant Voltage Mode (CV)	19-39V
Maximum Open Circuit Voltage DC	75V
Input Current When Output is Loaded (50/60Hz, 3-phase)	36A
KVA: Maximum Apparent Power Input	28.3
KW: Maximum Power Input	22.71
*Dimensions (LengthWidthHeight) (mm)*	720x365x550
Weight (Kg)	45

• 01 set of 3m MIG gun cable, made of 100% copper
• 01 set of 5m mass clamp cable, made of 100% copper
• 01 CO2 gauge
• 01 set of welding carriage + 01 integrated cable, 10m long
• Wire feed rollers: 1.0, 1.2, 1.6mm
• Welding nozzles: 1.0, 1.2, 1.6mm
• 1 piece of 3-phase power 2m cable
• 1 hex key with a diameter of 8mm
• 1 gas hose, 3m
